Professional Grade 70 V-Chain Bridles & Tow Chains – Heavy-Duty Recovery Series
High-Tensile DOT/FMCSA Compliant Chain Assemblies with RJT, J-Hook, and Grab Configurations
OVERVIEW
Dominate the most demanding vehicle recovery and transport operations with our Professional Grade 70 V-Chain Bridles & Tow Chains. Engineered exclusively for professional tow truck operators, emergency recovery crews, and auto transport fleets, these heavy-duty assemblies are forged from heat-treated, high-carbon steel. Designed to handle extreme dynamic tension, the chains are shielded by a corrosion-resistant yellow dichromate finish that stands up to road salt, mud, and harsh weather. Featuring a comprehensive array of specialized hook configurations—including Mini J-Hooks, massive Single Shank J-Hooks, and universal RJT clusters—this series provides immediate, secure attachment points for almost any vehicle frame or axle on the road today.
SYSTEM HIGHLIGHTS
-
Grade 70 High-Tensile Steel: Heat-treated for maximum strength-to-weight ratio, ensuring the chain will not stretch or deform under extreme vehicle recovery loads.
-
DOT & FMCSA Compliant: Meets and exceeds all federal safety regulations for commercial roadside towing, transport, and load securement.
-
Universal Hook Clusters: Outfitted with specialized hardware combos like RTJ/RJT cluster hooks and Single Shank J-Hooks to safely anchor into domestic and import vehicle chassis slots without causing frame damage.
-
Corrosion-Resistant Armor: The premium gold/yellow zinc dichromate plating actively prevents rust and oxidation, extending the operational life of the chain in severe weather.
-
High Working Load Limits (WLL): The 7.9 mm (5/16″) configurations offer a massive 2,131 kg (4,700 lb) WLL, while the 9.5 mm (3/8″) variants step up to a formidable 2,993 kg (6,600 lb) WLL.
SPECIFICATIONS BY VARIANT
| SKU | Model Designation | Chain Thickness (Metric / Imperial) | Assembly Length (Metric / Imperial) |

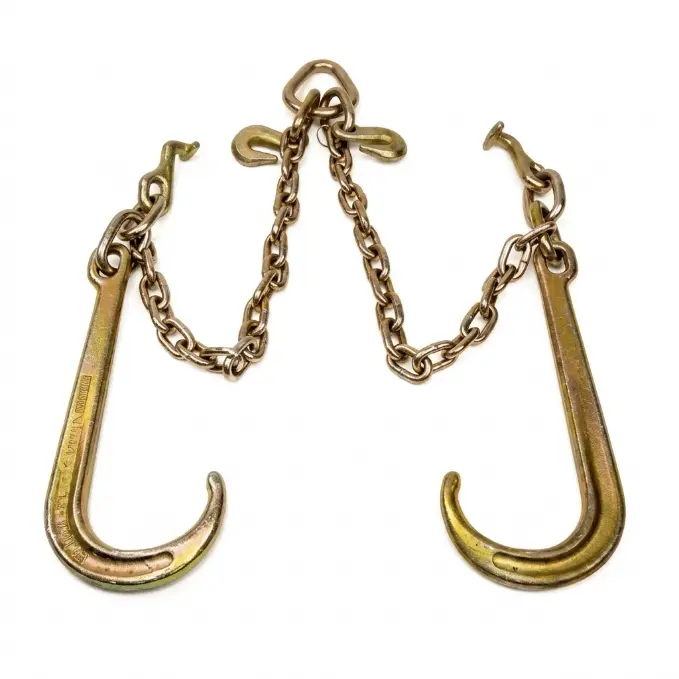

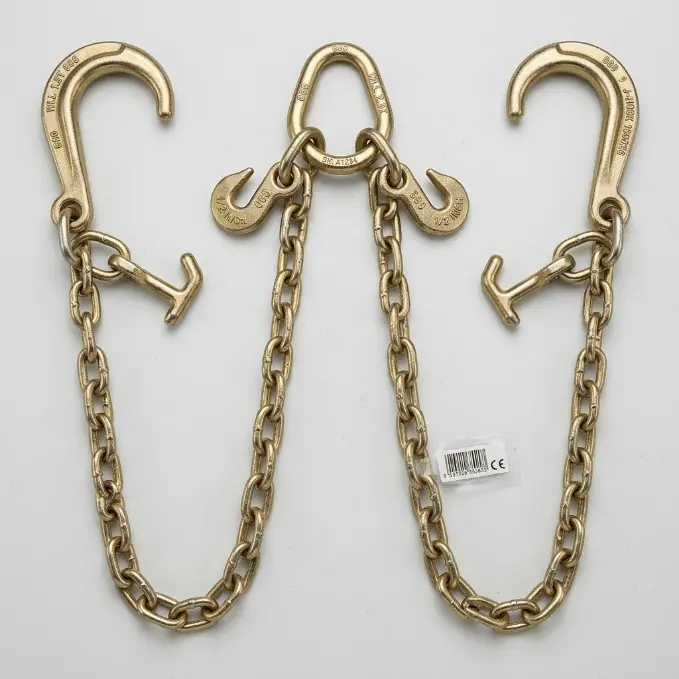

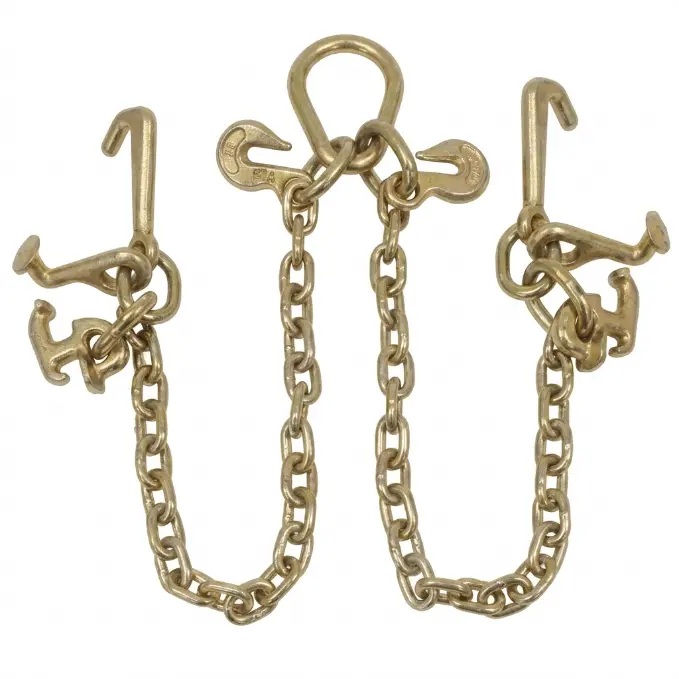

| 516BR | V-Chain Bridle | 7.9 mm (5/16″) | 2.28 m (7.5 ft) Per Leg |
| 38BR | V-Chain Bridle | 9.5 mm (3/8″) | 2.28 m (7.5 ft) Per Leg |
| T3FTC | Leg Tow Chain | 7.9 mm (5/16″) | 0.91 m (3 ft) |
| T4FTC | Leg Tow Chain | 9.5 mm (3/8″) | 0.91 m (3 ft) |

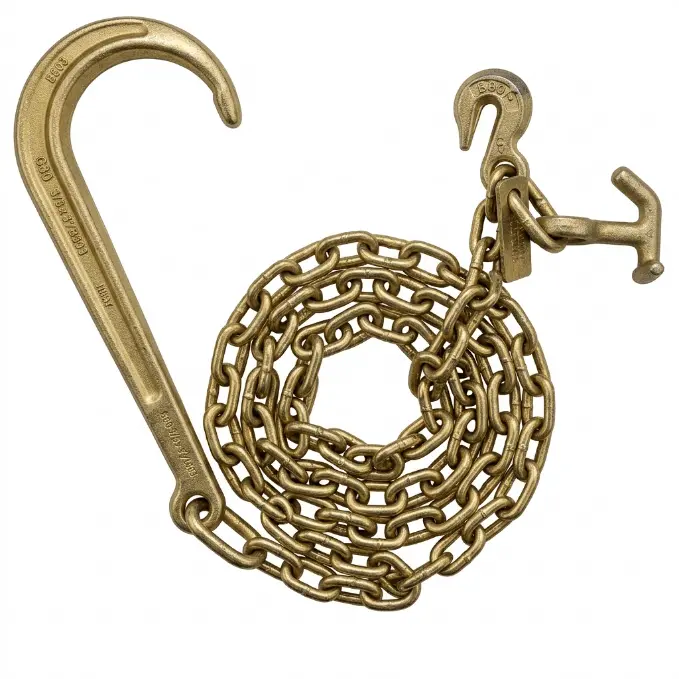

| 516JHS | Single Shank J & Cluster Hook | 7.9 mm (5/16″) | 3.04 m (10 ft) |
| 38JHS | Single Shank J & Cluster Hook | 9.5 mm (3/8″) | 3.04 m (10 ft) |

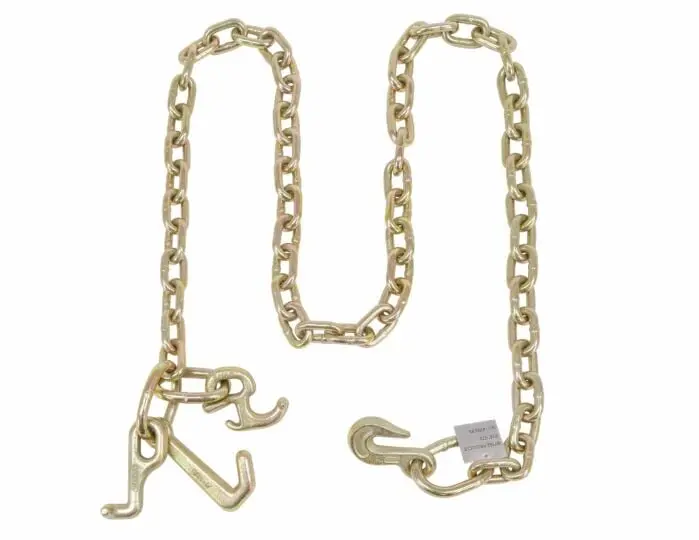

| 5163FTC | Tow Chain with Mini J Hook Cluster | 7.9 mm (5/16″) | 0.91 m (3 ft) |

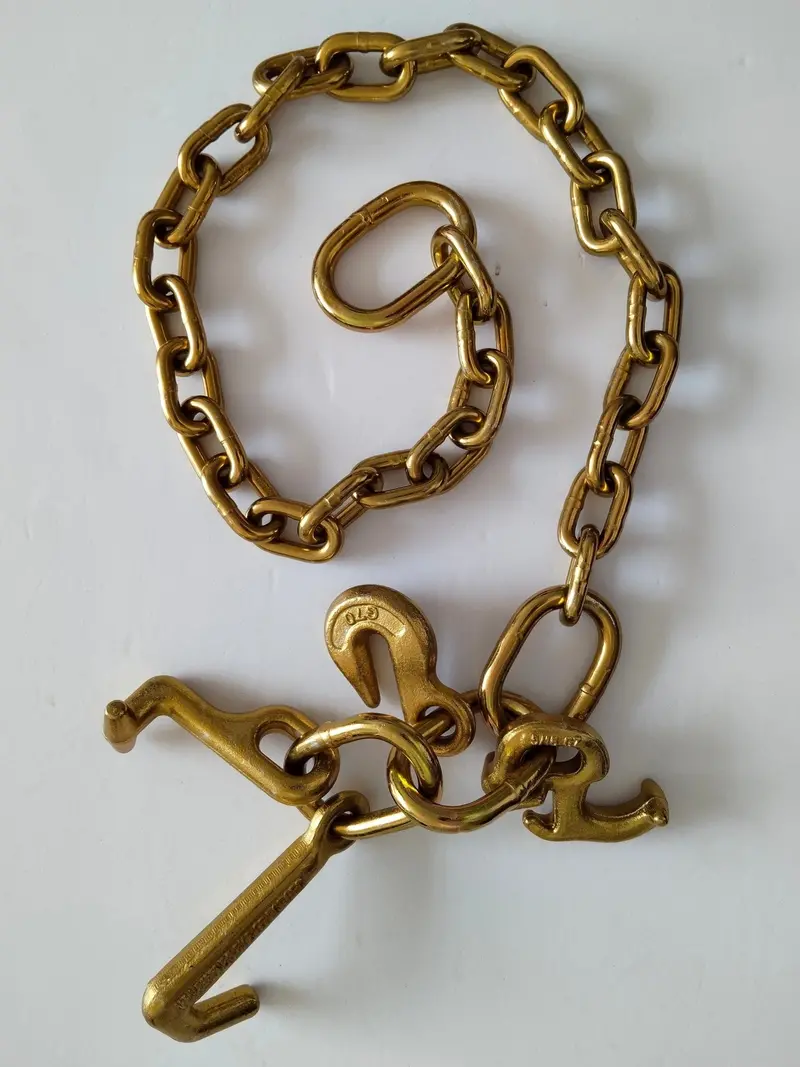

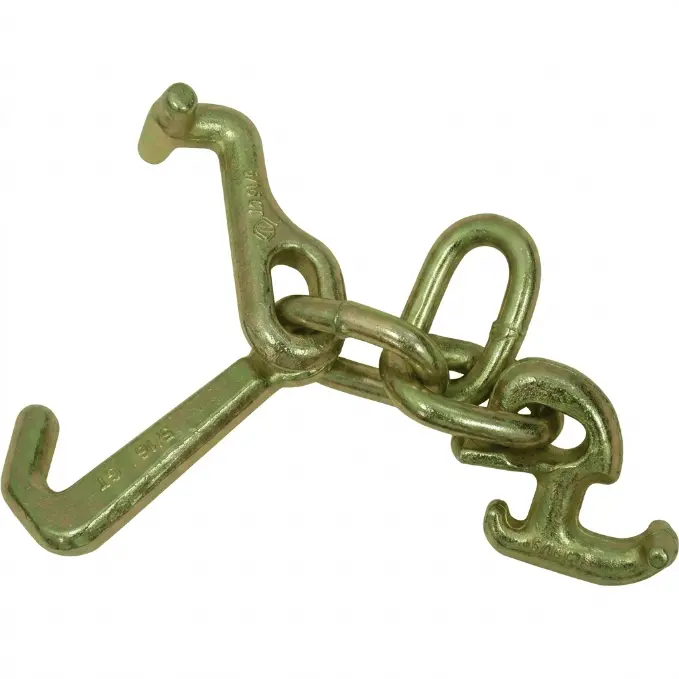

| RJTCS | RJT Cluster Hook Assembly | Hardware Only | N/A |
TECHNICAL DATA
-
Material Composition: Heat-Treated Carbon Steel
-
Chain Grade: DOT Grade 70 (Transport)
-
Surface Finish: Yellow Zinc Dichromate
-
Working Load Limit (5/16″): 2,131 kg (4,700 lbs)
-
Working Load Limit (3/8″): 2,993 kg (6,600 lbs)
IDEAL APPLICATIONS
-
Tow Truck Operators – Rapid, secure chassis hookups for flatbed and wrecker loading.
-
Roadside Emergency Response – Pulling vehicles out of ditches or hazardous off-road conditions.
-
Auto Transport Logistics – Providing compliant, heavy-duty securement for long-haul vehicle transport.
-
Industrial Equipment Hauling – Securing light-to-medium duty machinery to transport trailers.
